MAP Function in Google Sheets – LAMBDA Helper Function (New For 2022!)

The MAP function in Google Sheets creates an array of data from an input range, where each value is “mapped” to a new value based on a custom LAMBDA function.

MAP takes an input range of data from your Sheet, then performs an operation on each value of that range, and puts the results into an output array of the same dimensions as the original array.

Let’s see a silly example to understand how the MAP function works.

We’re going to transform an array of data into thumbs up for values 5 and over, and skull and crossbones for values less than 5. Stay with me here 😉

Here’s the input array:

input Array Google Sheets

To which we apply this MAP formula:

=MAP(A2:C4, LAMBDA(value, IF(value >= 5 , "👍" , "☠️" )))

MAP passes each value to the LAMBDA, which uses a regular IF function to test if the value is greater than or equal to 5, and output a thumbs up or skull.

To give an output array of:

output Array Google Sheets

If I highlight the values, you can see how MAP evaluates each value against the test, and transforms it into a thumbs up or a skull and crossbones.

The 9 has mapped to a thumbs up, and the 2 has mapped to a skull and crossbones.

How Map Function works in Google Sheets

Ok, so this isn’t a particularly useful example, but it’s a nice illustration of how the MAP function works.

There are some more practical examples further down this post.

🔗 Get this example and others in the template at the bottom of this article.

MAP Function Syntax

=MAP(array1, [array2, …], lambda)

It takes 2 or more arguments:

array1

This is the first input array that you want to map into a new array.

[array2, …]

These are optional, additional input arrays to use in the map operation.

lambda

This is the function operation that will be performed on each item in the input array. The LAMBDA function must have a placeholder variable for each input array.

MAP Function Notes

  • The position of items in the array is not changed by the MAP function. So the item at position (1,1) will map to position (1,1).
  • MAP will work with array literal intputs also. See the simple example that follows.
  • The MAP function in Google Sheets accepts multiple input arrays. The input arrays must have the same dimesions. Each input array requires a variable in the lambda expression.

MAP With Array Literal Inputs

The MAP function accepts array literal inputs, which are arrays created with curly brackets {…}.

For example, this formula uses a simple LAMBDA function to double each number in the input array literal. The output in this case is another array: 2, 4, 6

=MAP({1,2,3},LAMBDA(x, x*2))

The MAP function passes each number into the LAMBDA in turn, so 1 doubles to 2, 2 doubles to 4, and 3 doubles to 6. The results form a new output array of the same dimension.

MAP Formula Temperature Example

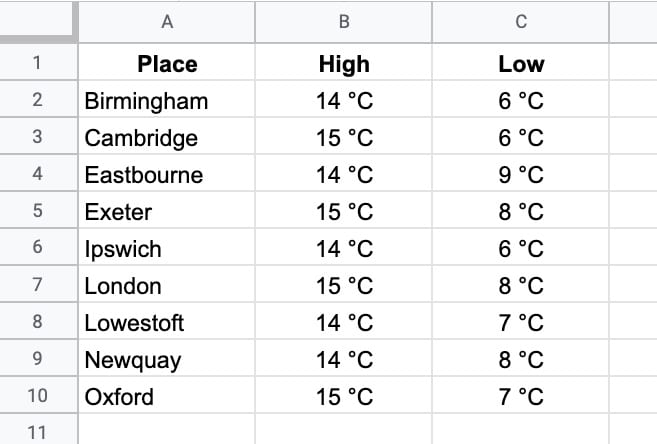

Suppose you have this dataset, which displays the average annual high and low temperatures for places in England:

array in google Sheets

Let’s use MAP to convert them to an array of temperatures in Fahrenheit.

You could do this with regular formulas, or array formulas, but this kind of array transformation is ideal for the MAP function. You can do the transformation with a single formula, without needing an array formula.

Let’s see how.

To begin, we’ll use a REGEXEXTRACT function to extract the digits (and drop the °C), where t is the placeholder variable representing the input temperature:

REGEXEXTRACT(t,"\d+")

Then we’ll convert the celsius temperature to a Fahrenheit temperature with the CONVERT function:

CONVERT(REGEXEXTRACT(t,"\d+"),"C","F")

Then we’ll round that with the ROUND function and append the °F to indicate Fahrenheit:

ROUND(CONVERT(REGEXEXTRACT(t,"\d+"),"C","F"))&" °F"

This is the basis for our LAMBDA function:

LAMBDA(t,ROUND(CONVERT(REGEXEXTRACT(t,"\d+"),"C","F"))&" °F")

Finally, we can complete the MAP formula:

=MAP(B2:C10, LAMBDA(t, ROUND( CONVERT( REGEXEXTRACT(t,"\d+"),"C","F"))&" °F"))

This single MAP formula creates a new array by transforming each element of the original array.

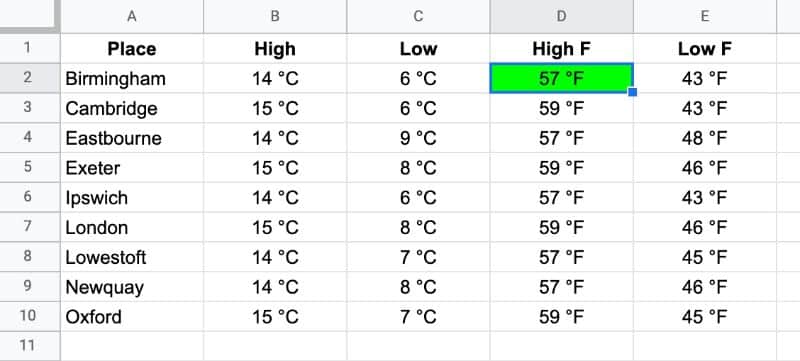

The output looks like this:

temp Array Output in Google Sheets

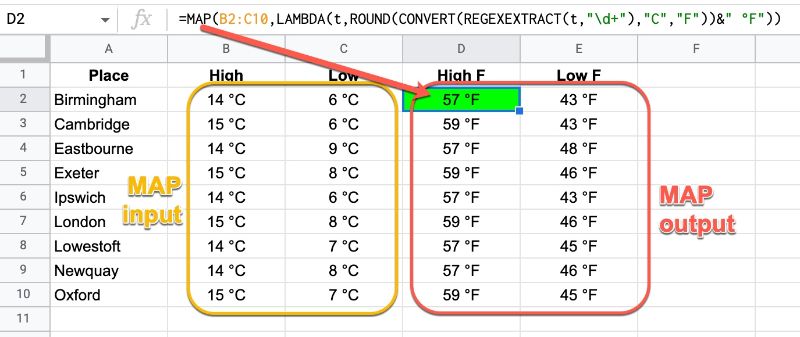

And here’s a visual explanation of how it works:

Map Function In Google Sheets

Multiple Input Arrays

MAP also accepts multiple input arrays.

For example, this formula calculates the max value at a given position from two input arrays.

=MAP(A1:C3,E1:G3,LAMBDA(a,b,MAX(a,b)))

Here, in the lambda, “a” represents the value from the first input array, and “b” represents the value from that same position (e.g. 1,1) of the second input array.

If I had a third input array, I would need another variable (e.g. “c”) in my lambda expression.

The returned array consists of all the max values.

MAP Function Template

Click here to open a view-only copy >>

Feel free to make a copy: File > Make a copy…

If you can’t access the template, it might be because of your organization’s Google Workspace settings.

In this case, right-click the link to open it in an Incognito window to view it.

See Also

See the LAMBDA function and other helper functions MAP, REDUCE, MAKEARRAY, etc. here:

Named Functions and New Functions In Google Sheets For 2022
